CG2400SV

CG2400SV
CG2400SV - Image 2
CG2400SV - Image 3

CG2400SV

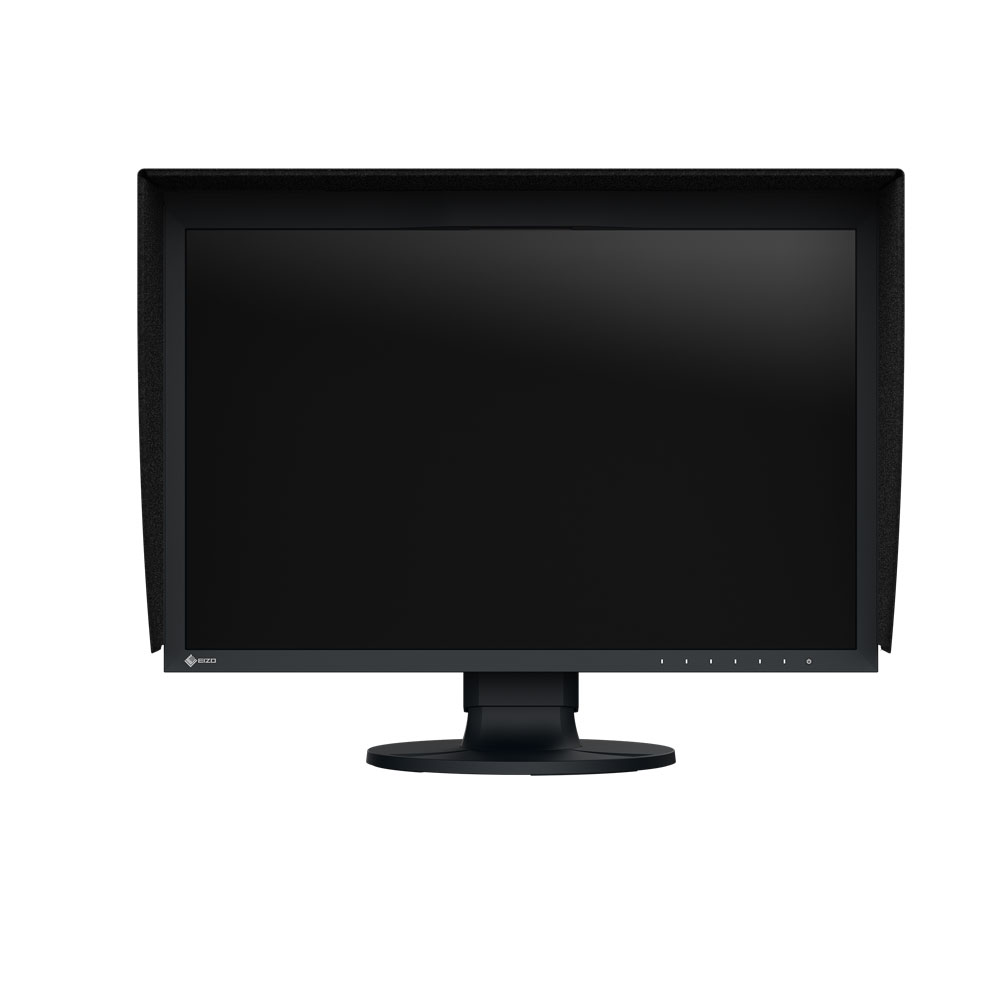

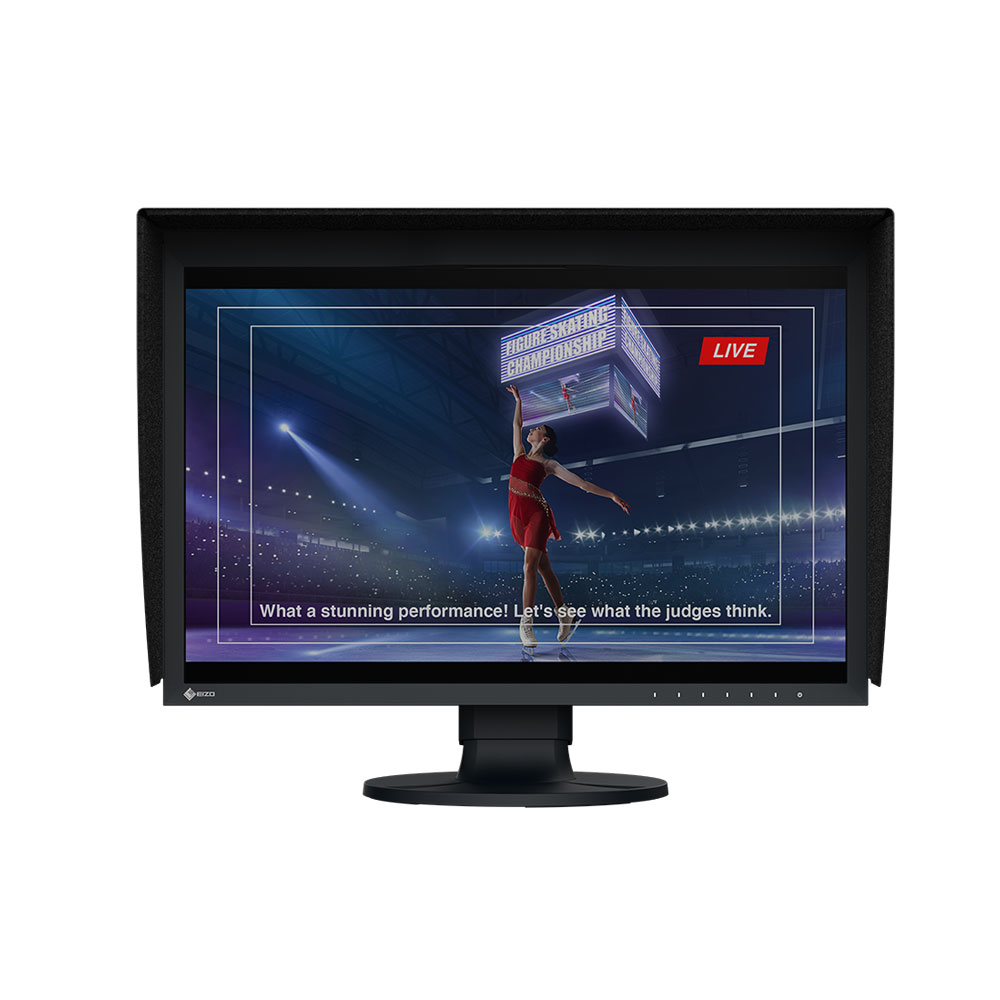

24.1″ Color Management LCD Monitor

Precision that Performs Live

This 24.1-inch WUXGA (1920 x 1200) monitor features SDI connectivity for seamless integration into professional broadcast and video production workflows. Whether on-site or in-studio, its compact design, built-in self-calibration sensor, and HDR gamma support help ensure every moment is displayed in stunning detail.

Type – IPS
Backlight – Wide-Gamut LED
Size – 24.1″ (61.1 cm)
Native Resolution – 1920 x 1200 (16:10 aspect ratio)
Viewable Image Size (H x V) – 518.4 x 324.0 mm
Pixel Pitch (H x V) – 0.270 x 0.270 mm
Pixel Density – 94 ppi
Display Colors – 1.07 billion colors, 10-bit display (from a palette of 278 trillion, 16-bit LUT)

ENQUIRY!

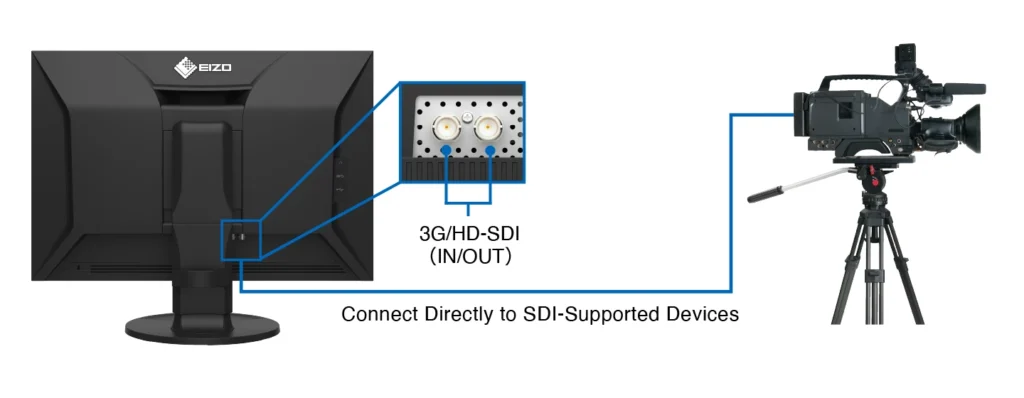

SDI Connectivity

The CG2400SV features SDI input and output terminals, supporting 3G-SDI Level A and HD-SDI signals. SDI connectivity enables the transmission of uncompressed video signals, preserving the full fidelity of HDR content without introducing visual artifacts. This ensures seamless integration with professional camera systems and live video feeds, making the monitor a reliable solution for accurate monitoring on-site and in-studio.

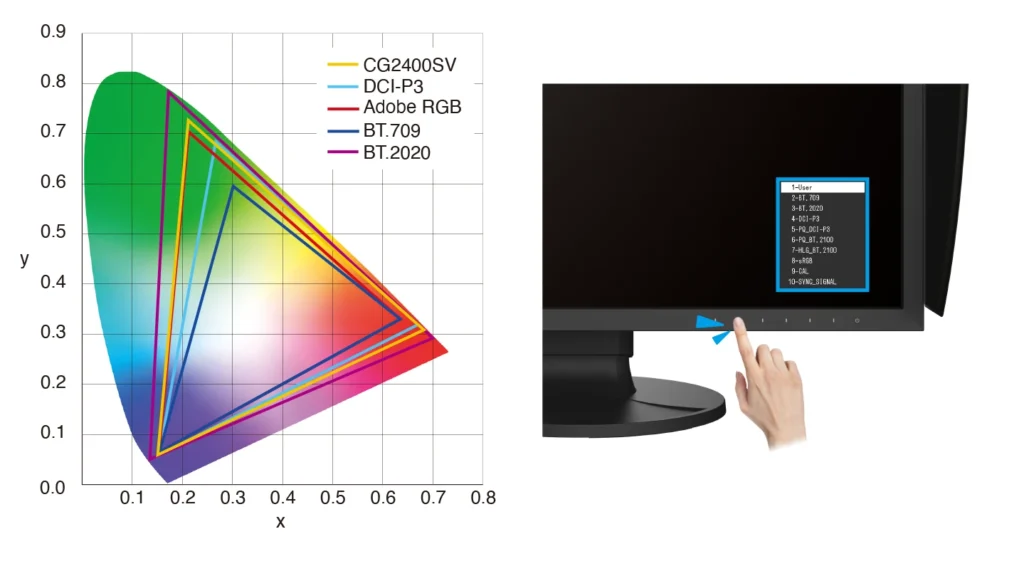

Color Precision

Industry Standard Color Reproduction with Broadcast and Cinema Presets

The monitor’s wide color gamut covers 98% of the DCI-P3 standard used in digital cinema and supports the BT.2020 standard used in broadcasting for exceptionally faithful reproduction of color. It also covers 99% of the Adobe RGB color space so images and video shot in Adobe RGB will be displayed correctly. Color mode presets can easily be changed via the switches on the front of the monitor, enabling straightforward color management for each project.
